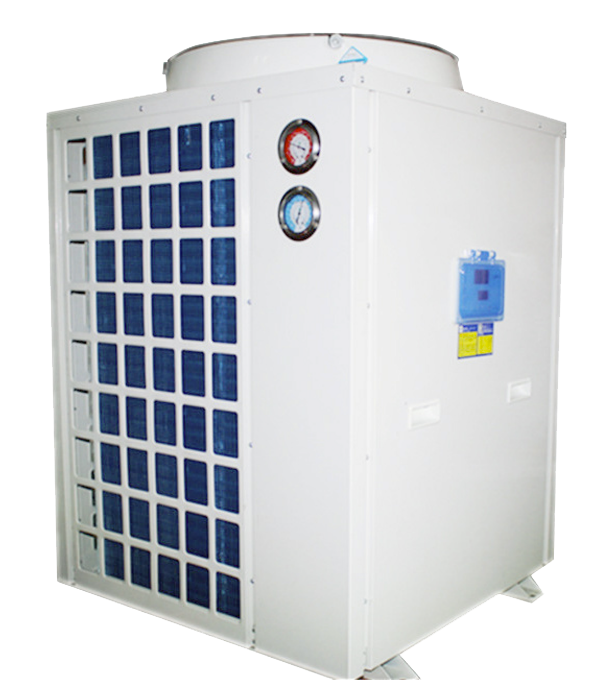

Chillers
Reliable air source chiller solutions designed to deliver efficient cooling performance across a range of residential, commercial and project-specific applications.
Cooling Capacity For Every Requirement.
Choose from a range of air source chiller capacities designed to support different cooling requirements and project sizes.
Engineered For Efficient Cooling Performance.
Explore the technical specifications for our available air source chiller models.
2TR & 3TR Chillers
Compact air source cooling solutions
| SPECIFICATION | 2TR | 3TR |
|---|---|---|
| Source | Air Source | Air Source |
| Nominal Cooling Capacity | 7.8 kW | 10.5 kW |
| Rated Input Power | 4 kW | 3.5 kW |
| Rated Input Current | 12 Amps | 8 Amps |
| Performance Coefficient COP | 4 | 4.2 |
| Rated Cooling Water Output Temp. | 18°C | 18°C |
| Water Flow | 2.1 m³/hr | 3.2 m³/hr |
| Connection Size | DN20 | DN25 |
5TR, 7.5TR & 10TR Chillers
Higher capacity cooling solutions
| SPECIFICATION | 5TR | 7.5TR | 10TR |
|---|---|---|---|
| Source | Air Source | Air Source | Air Source |
| Nominal Cooling Capacity | 17.5 kW | 26 kW | 35.1 kW |
| Rated Input Power | 4.5 kW | 8.5 kW | 11 kW |
| Rated Input Current | 10.94 Amps | 17 Amps | 24.5 Amps |
| Performance Coefficient COP | 4.77 | 3.8 | 4.4 |
| Rated Cooling Water Output Temp. | 18°C | 18°C | — |
| Water Flow | 4.1 m³/hr | 5.5 m³/hr | 15 m³/hr |
| Connection Size | DN32 | DN40 | DN50 |
Designed Around Performance And Efficiency.
A versatile range of cooling systems with specifications suited to different capacity requirements.
Air Source Technology
Air source systems provide a flexible approach to cooling applications across the available capacity range.
High Performance COP
The available models offer performance coefficients ranging across different system capacities and configurations.
Multiple Capacity Options
From compact 2TR systems to higher capacity 10TR models, options are available for different project requirements.
Reliable Cooling Output
Selected models are specified with a rated cooling water output temperature of 18°C for dependable cooling performance.
Cooling Solutions For Every Project.
Residential
Cooling solutions for residential applications and developments.
Commercial
Flexible capacity options for commercial cooling requirements.
Large Projects
Higher capacity systems designed for demanding installations.
Custom Requirements
Multiple system sizes to help match different project needs.
