SOLAR WATER HEATING
SOLAR HOT WATER SOLUTIONS
Request More Information

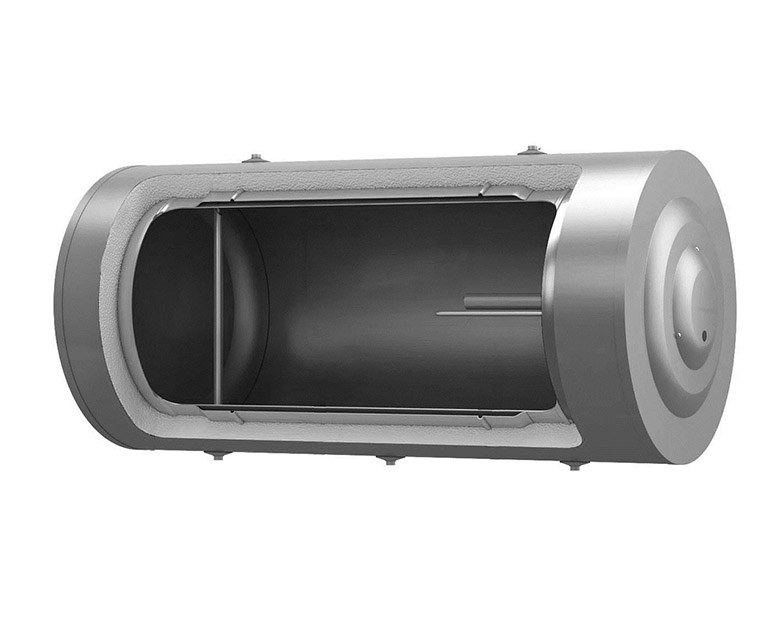

Closed Circuit Solar Water Heaters
Efficient solar water heating solutions designed with a dedicated closed circuit system and reliable hot water storage for residential and commercial applications.
Closed Circuit System
150L – 300L Capacity
Enamel Water Surface
High Performance Design
AVAILABLE MODELS
The Right Capacity For Every Requirement.
Available in multiple storage capacities to support different hot water requirements and installation needs.
150L
COMPACT CAPACITY
200L
POPULAR CHOICE
250L
HIGHER CAPACITY
300L
MAXIMUM CAPACITY
TECHNICAL SPECIFICATIONS
Built With Precision For Reliable Performance.
Explore the key capacity, dimension and construction specifications across the available models.
Closed Circuit Solar Water Heater Specifications
| TYPE | 150L | 200L | 250L | 300L |
|---|---|---|---|---|
| Actual Capacity (HDW / CC) | 140L / 8L | 205L / 9L | 240L / 11L | 295L / 15L |
| External Dimensions (Length × Diameter mm) | 1250 × 500 | 1250 × 580 | 1500 × 580 | 1800 × 580 |
| HDW Tank (Diameter mm) | 400 | 480 | 480 | 480 |
| Weight (kg) | 62 | 70 | 79 | 102 |
| Flange Diameter (mm) | 140 | 140 | 140 | 140 |
Material Aspects
- Made of DC metal sheet with 2.5mm thickness and MAG welding.
- External cover with 0.5mm thickness.
- Available with pre-painted anti-corrosive metal sheet, aluminum or stainless steel alternatives.
- Liquid enamel surface suitable for potable water.
- Environmentally friendly hard polyurethane insulation with 48 kg/m³ density.
Endurance Aspects
- Maximum HDW tank operating temperature of 90°C.
- Maximum operating pressure: HDW Tank 10 bar.
- Maximum operating pressure: Closed Circuit 3.2 bar.
- HDW tank test pressure of 15 bar.
- Closed circuit test pressure of 5 bar.
